New generation scaffolding “IQ system”
Model:
IQ system
Applications:

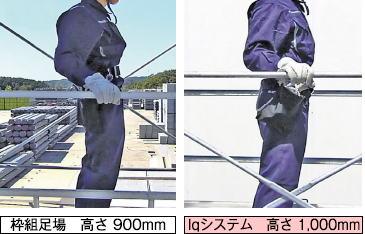

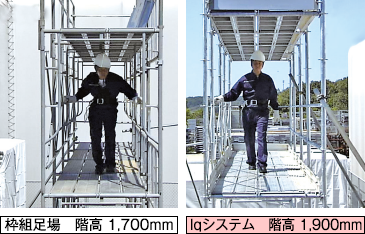

New generation scaffolding has higher floor and larger space. And the ability to speedy assembling and dismantling.| The height of scaffolding floor is 1900mm. It creates easy passing and working without bending down. Make working environment safer. The height of standard preceding handrail is over 1,000mm, above the regulation regarding safety and sanitation. This deference brings a sense of security. |
 |
|

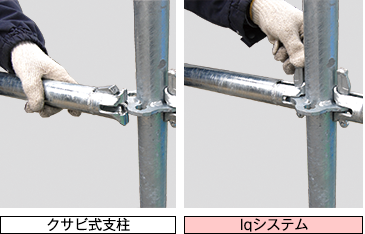

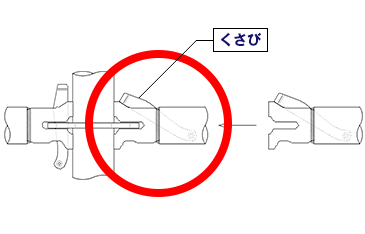

| Post thickness reduced to 2mm.Lesser weight compared with the previous wedge binding type post. | Installing is to insert the wedge into the post flange from the side. No need to pull out the binding parts. It's enable speedy assembling and dismantling work. |
 |
 |

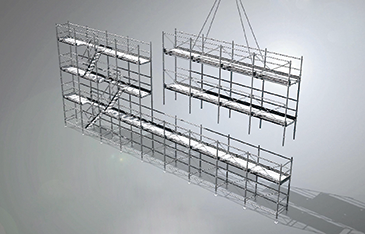

| The handrail and the binding site have stopper function. Major assembling and major dismantling are possible. | Wedge and Flange are cast from high tenacity material, reduce wearing and increase compactness. |
 |
 |
| Wedge can be stored in the post. This will reduce the shipping volume and keep wedge from damaging during shipment. |
 |
 |

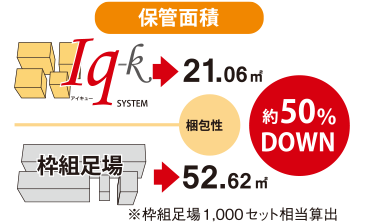

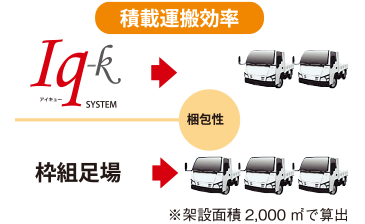

| Because of the packing volume reduced. Storage efficiency has greatly increased. |
 |
 |

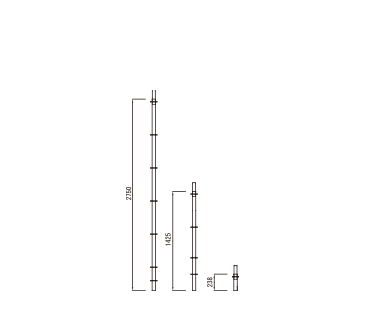

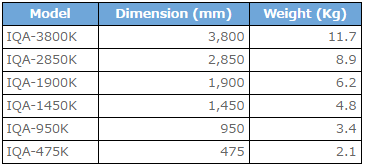

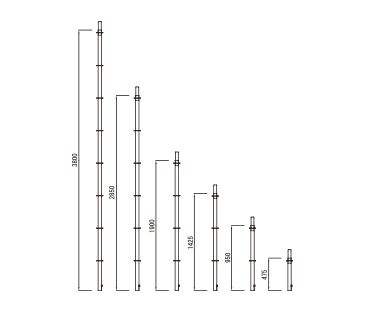

| Post | Lower post |
 |
 |
 |
 |

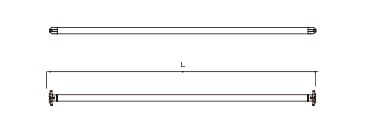

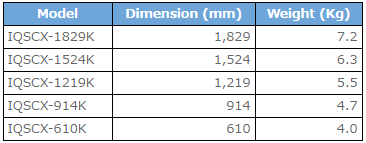

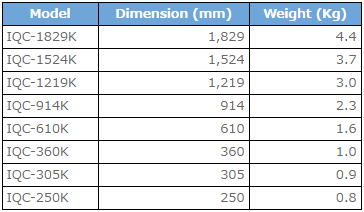

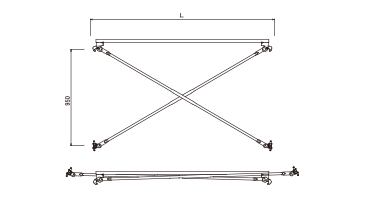

| Handrail | Preceding handrail |
 |
 |
 |
 |

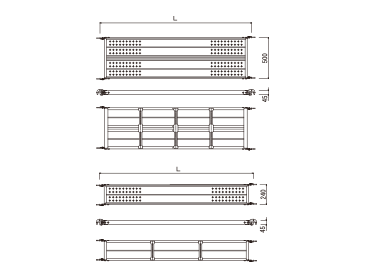

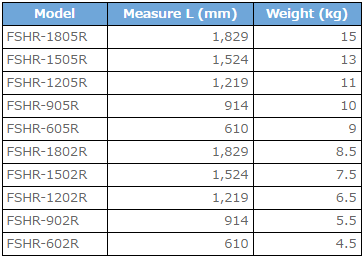

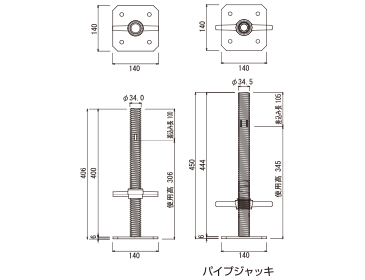

| Scaffold plank | Jack base |
 |
 |
 |
 |

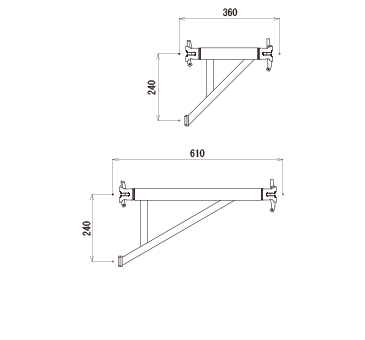

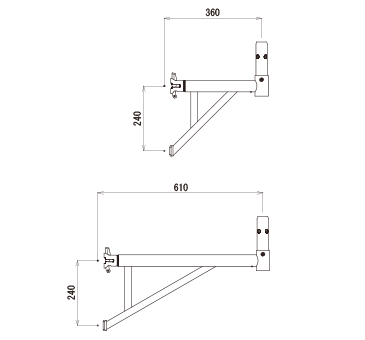

| Bracket | Overhang bracket |
 |
 |
 |
 |

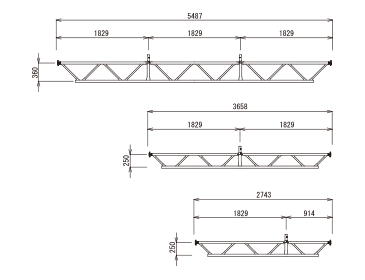

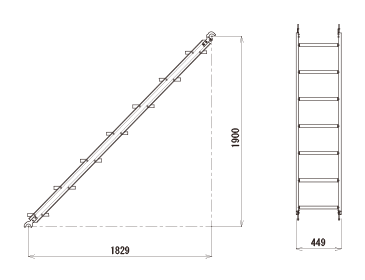

| Beam frame | Steps |
 |
 |
 |
 |

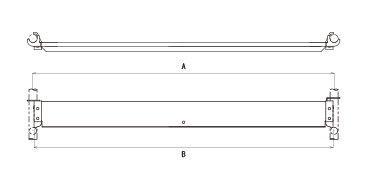

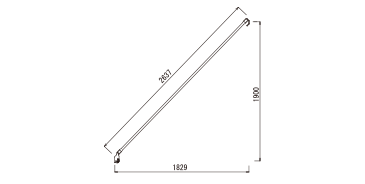

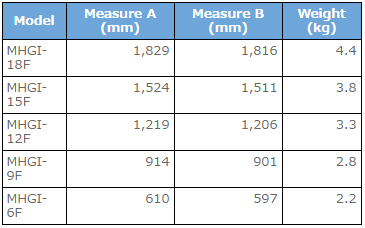

| Step handrail | Skirting board |
 |
 |
 |
 |
| L type attachment |
 |
 |
